Transparent 3D Printed Parts?

Transparent parts have always been a challenge in traditional manufacturing methods, but with 3D printing, it is possible to achieve transparent parts using a clear resin material in Stereolithography (SLA) 3D printing. In this blog post, we will explore the possibilities of creating transparent parts using SLA 3D printing and the post-processing techniques involved in achieving a crystal-clear finish.

• Step 1 : Sanding. The first step in post-processing is sanding the surface of the part using progressively finer grits of sandpaper, starting with a rough grit and gradually moving to a finer grit. This helps to remove any visible layer lines and imperfections on the surface of the part.

• Step 2 : Polishing. After sanding, polishing the part is the next step in achieving a clear finish. Polishing can be done using a polishing compound and a polishing wheel, or by hand using a microfiber cloth and a polishing paste. This helps to remove any scratches left by the sandpaper and bring out the natural shine of the clear resin.

• Step 3 : Clearcoat. The final step in achieving a clear finish is applying a clear coat or lacquer to the surface of the part. This helps to further smooth out the surface and add a protective layer to prevent scratches or damage. Once the clear coat has dried, the part can be buffed using a microfiber cloth to bring out the final shine.

It is worth noting that achieving a truly transparent finish with SLA 3D printing requires some experimentation and trial and error. The thickness of the part, as well as the settings used in the 3D printing process, can affect the level of transparency achieved. Additionally, the quality of the resin used can also impact the final result.

Fused Deposition Modeling (FDM) technology is capable of producing semi-translucent parts, offering a more cost-effective alternative to SLA printing. However, it's important to note that the transparency of FDM parts is heavily influenced by the layer lines.

Therefore, careful consideration of the FDM layering technique is crucial to achieve the desired level of transparency.

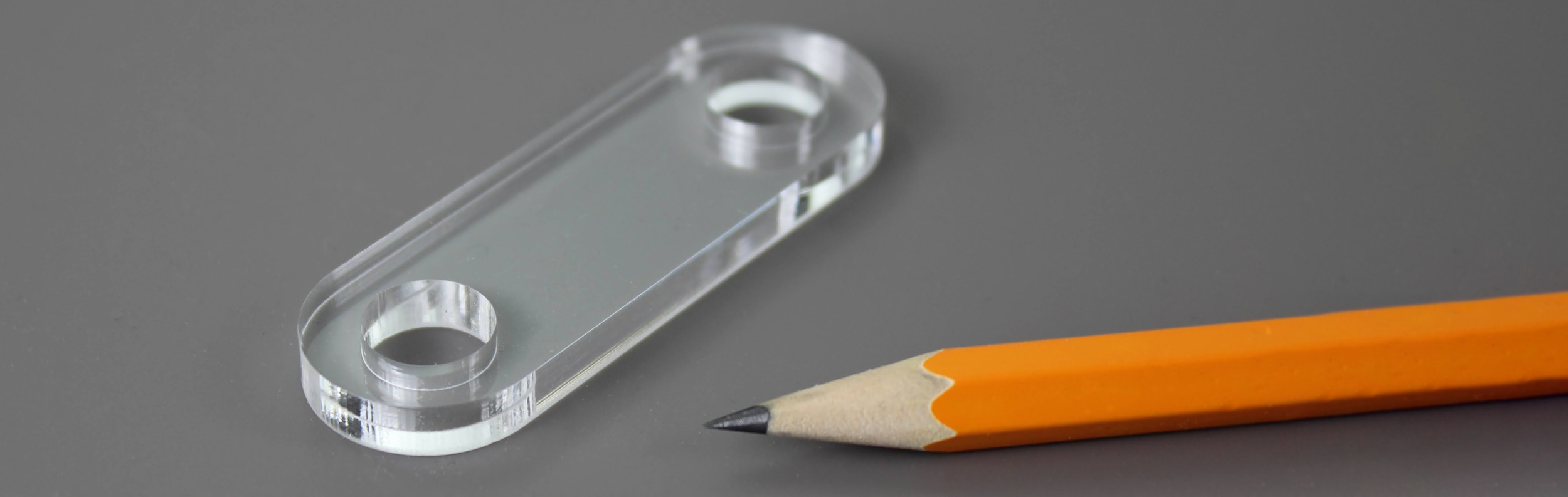

Laser Cutting technology is a promising method for producing fully transparent parts. However, this technique is limited to flat geometries due to the nature of the process.

Despite this limitation, Laser Cutting remains a viable option for creating fully transparent parts, particularly for applications where flat geometries are suitable. By taking advantage of the precision and accuracy of the laser, designers can create intricate and detailed designs that are fully transparent, adding a unique touch to their projects.

Vacuum Forming technology can create semi-transparent parts, but only for uniform thickness geometries.

This process involves heating a plastic sheet until it becomes pliable, then molding it with a vacuum around a pattern. While it is limited to consistent thickness designs, vacuum forming is still a popular and cost-effective method for producing items like packaging materials, protective covers, and light diffusers.
